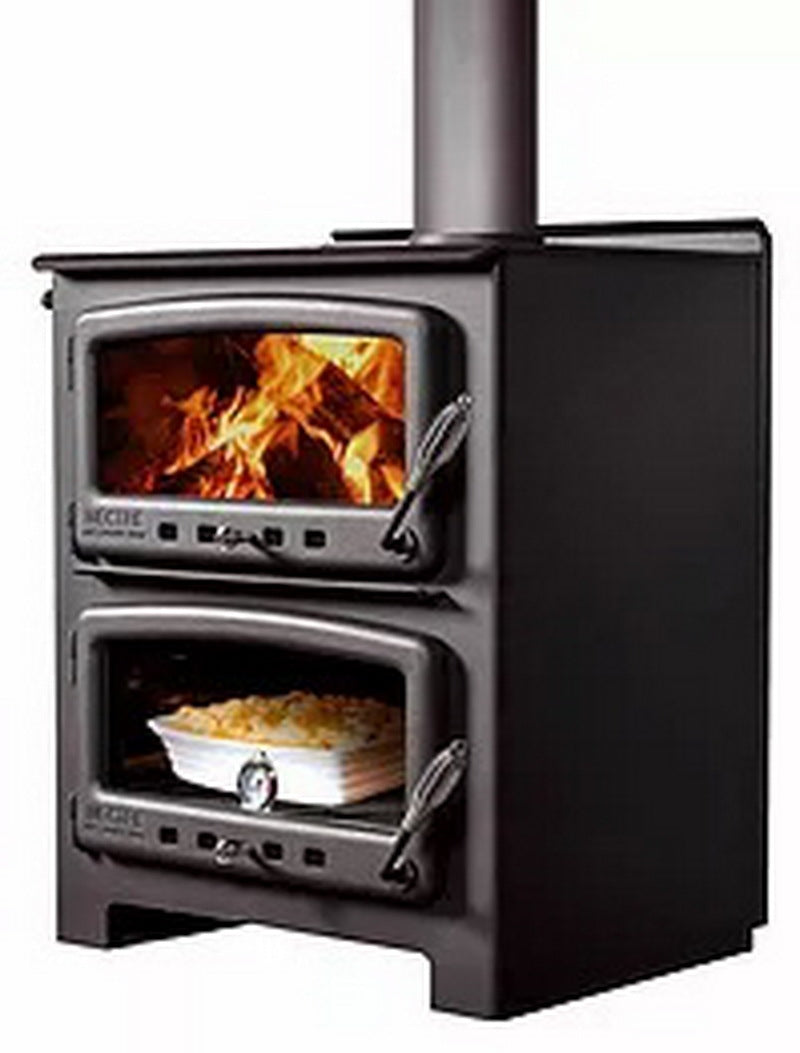

Nectre Bakers Oven -Radiant Wood Stove/Heater

Features

Nectre Bakers Oven is finished in black metallic paint and comes with cast iron door with ceramic glass and a stay cool spring handle. Steel baffle with steel brick retainer and firebrick lining to improve thermal mass.

• A 900mm x 900mm hearth is required.
• Door aperture is 245mm x 345mm.
• Total weight of the Bakers Oven is 120kg.
• 5 year firebox warranty on the Bakers Oven.

Domestic Boiler option

The Bakers Oven can be manufactured with a stainless steel domestic boiler option.

We recommend having a professional install any of our Nectre heaters.

Heater Clearances

Installation clearance distances for the Nectre Bakers Oven are as follows:

• 125mm from rear of heater to wall in a standard installation (square to walls).
• 350mm from side of heater to wall in a standard installation (square to walls).
• 350mm from rear corner of heater to wall in corner installation.

Flue and Hearths

Nectre Bakers Oven is not supplied with a flue from the factory. Our Dealers all provide suitable a flue and or decromesh kits required for installation. Nectre heaters do not come with hearths, our Dealers can supply a suitable hearth for your requirements.

Installation

We recommend having a professional instal any of our Nectre heaters. Our Dealers can arrange installation and most cases will undertake a site inspection to determin the correct location.

The Nectre Bakers Oven outer skin is the firebox, which means heat radiants objects around the fire. Radiant heat is excellent if you want to sit in front while watching the fame.

FLUE INSTALLATION

BAKERS OVEN WORKINGS

Hot flue gases circulate around the oven box to provide excellent cooking temperatures to bake a loaf or succulent roast or a favourite stew. The gases are then expelled through the Flue outlet. The bypass damper allows the Bakers Oven to function as a excellent wood heater when cooking is not required.
