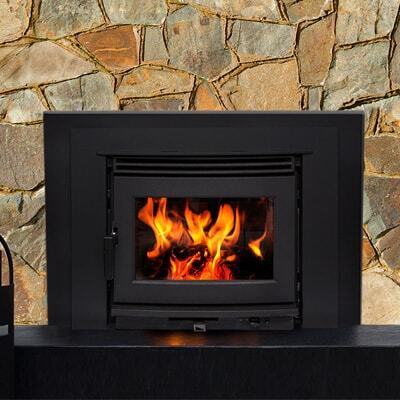

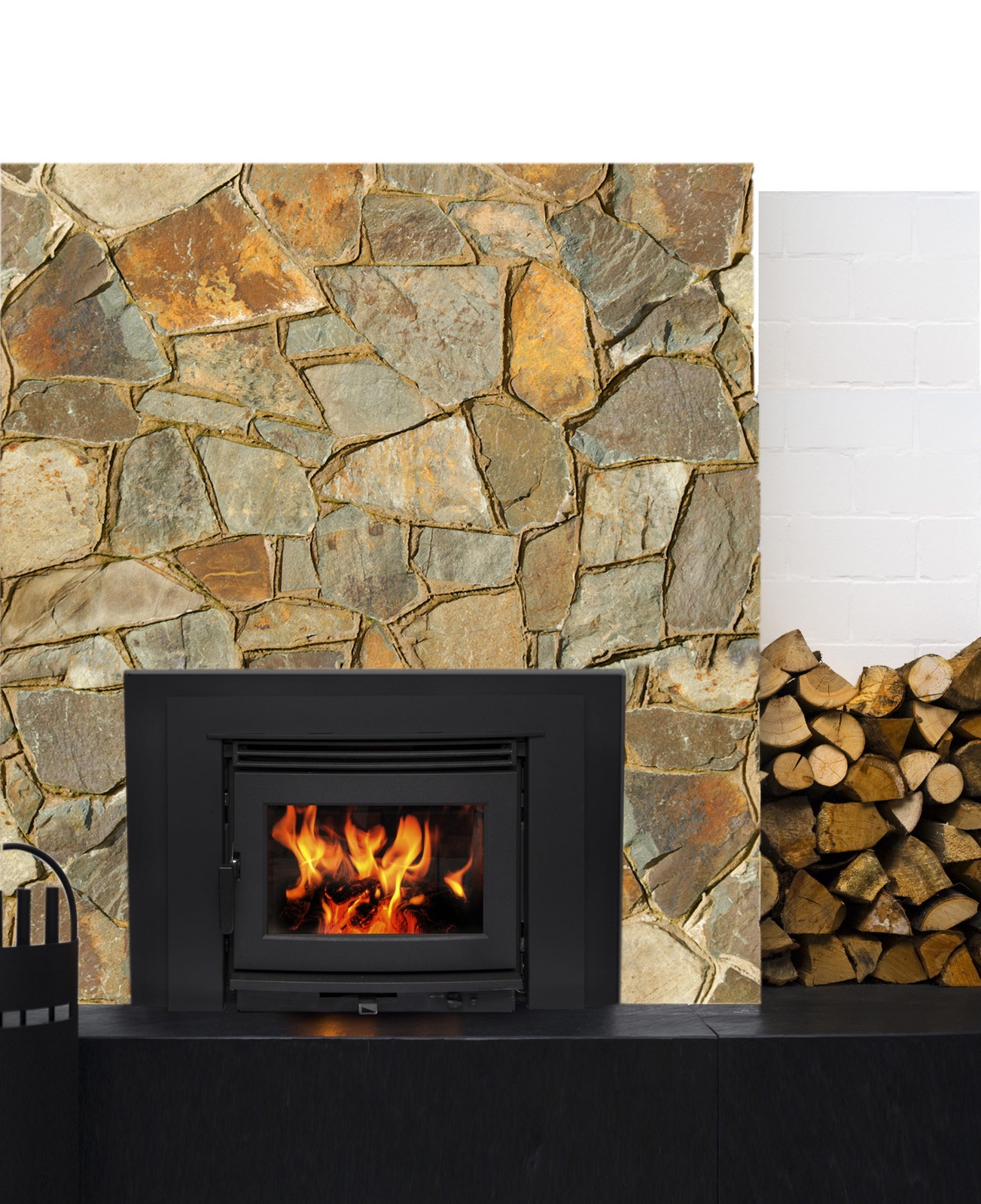

Pacific Energy Neo 2.5 Insert Wood Fire

$4,995.00


FOR HEATING MEDIUM TO LARGE SPACES

Transform an energy-wasting fireplace into a cost-saving source of heat without sacrificing the comfort and appeal of a wood fire. The Neo 2.5 Insert LE accommodates larger existing masonry fireplace and features Pacific Energy’s trusted industry leading construction, boost air for easy lighting and one-lever air control for simple operation and burning efficiency. With all the features of the Neo 1.6 Insert in a larger, higher-output format, the Neo 2.5 Insert delivers exceptional performance and durability.

STANDARD FEATURES

Heat Output 280-300 m2

EPA 2020 Certified
Reliable, Durable Catalytic-Free Technology
Extended Burn Technology (EBT)
Airwash Technology for clear, clean glass
Floating firebox for extended stove life
High-tech multi-port combustion air injection system
Single-Lever Air Control
Rich metallic black finish
High capacity baffle system
Removable Cast-Iron Flue Collar
Integrated Heat Exchanger
Inside and outside combustion air capable
East-West fuel loading

An additional Backing Panel and Front Trim may be needed.

TECHNICAL INFORMATION

85,000 BTU Cord Wood
60,000 BTU EPA Test Fuel

Efficiency (HHV) 72%
Emissions 2.0 gm/hr.
Log Size (recommended) 16"
Log Size (max) 18"
Firebox Size 2.5 cu.ft.
Glass Viewing Area 166 sq.in.
Weight 420 lbs.

Minimum Clearances to Combustibles

Side of Door to Adjacent Sidewall..................................... 15 in.(380 mm)

Side of Door to Side Mantel Pillar................................ 11 1/2 in.(290 mm)

The top of Surround brow to the Mantel.............................16 in.(405 mm)

The top of Surround brow to the Top Facing......................16 in.(405 mm)

Bottom of unit to Ceiling.......................................................68 in.(1.7m)

(NE25.AUINSA)

SKU NE25.AUINSA
Brand Pacific Energy
