Pacific Energy Neo 1.6 Backing Plate

FREE Fan valued at $550. Ends April 31st!

$178.00

or 4 payments of $44.50 with Info



FOR HEATING MEDIUM SPACES

The Neo 1.6 LE makes a bold statement with it’s tall profile for easy loading, line-of-sight view of the flame, and modern design. Like its larger cousin the Neo 2.5, the Neo 1.6 LE is a true heating machine with Pacific Energy’s solid steel construction, floating firebox with stainless steel baffle and high-efficiency finned heat exchanger. Choose the color that is right for your home with side panels available in a variety of porcelain enamel colors.

STANDARD FEATURES

EPA 2020 Certified
Reliable, Durable, Catalytic-free Technology
Airwash Technology for clear, clean glass
Floating firebox for extended stove life
High-tech multi-port combustion air injection system
304 Stainless Steel Baffle, insulation cover, rails and flame shield
Rich Metallic Black finish
Boost air for easy lighting
Integrated heat exchanger
Easy to use ash disposal system
Leveling Legs
Heavy plate-steel top
Inside and outside combustion air capable
Mobile Home Approved
East-West fuel loading

TECHNICAL INFORMATION

56,000 BTU Cord Wood
23,200 BTU EPA Test Fuel

Efficiency (HHV) 72%
Emissions 1.9 gm/hr.
Log Size (recommended) 16"
Log Size (max) 17"
Firebox Size 1.6 cu.ft.
Glass Viewing Area 173 sq.in.
Weight 350 lb
Chimney Size 6”

Specifications

dimensions
height 940mm
width 690mm
depth 512mm

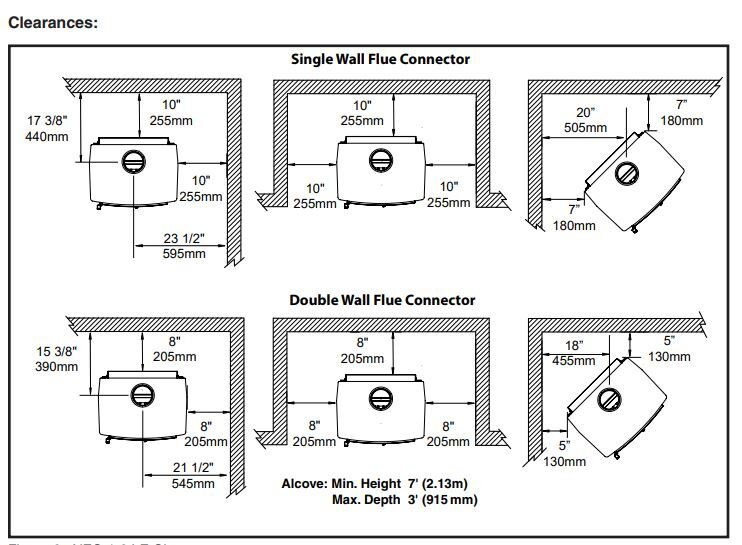

Clearances
Rear clearance to combustible 120mm
Side clearance to combustible 250mm
Corner clearance to combustible 150mm
Rear clearance to non combustible 25mm
Side clearance to non combustible 25mm
Corner clearance to non combustible 25mm
Info
flue size 150mm
min flue height 4mtrs
hot water No
heating capacity 250m2
efficiency 75%
Emissions 0.7grms
wood length 400mm
stove weight 154kg

(NE16.BPMBKA)

SKU NE16.BPMBKA
Brand Pacific Energy
