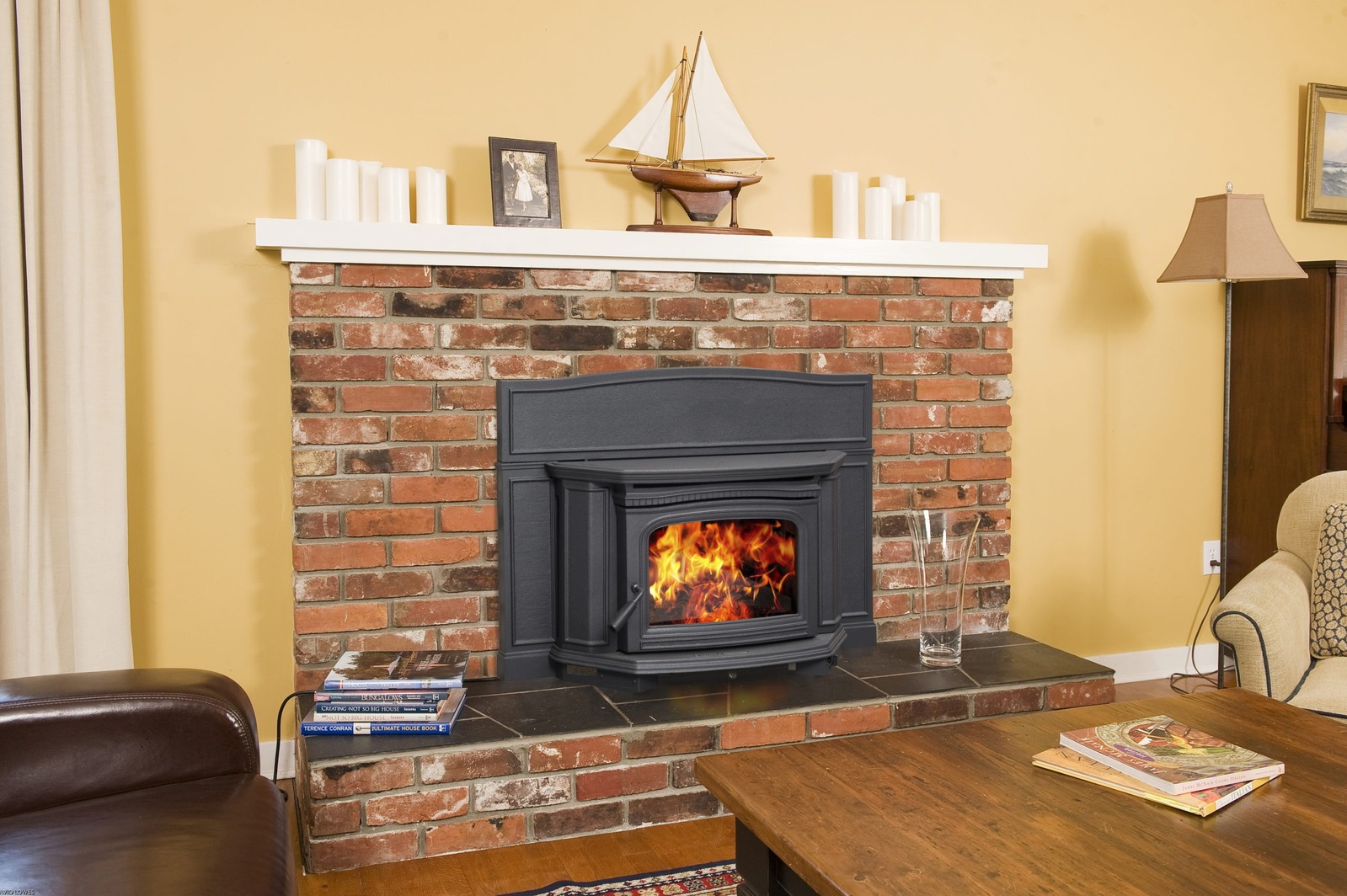

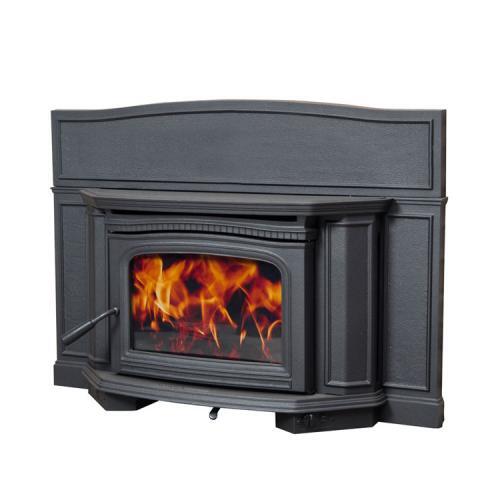

Pacific Energy Alderlea T5 Insert LE Wood Fire with Black Surround

FOR HEATING MEDIUM SPACES

The Alderlea cast iron over steel insert allows you to transform your fireplace into an efficient heating system with traditional cast iron styling. Like all Pacific Energy inserts, it’s easy to light, easy to use, and provides a clear view of the flame. With a variable speed fan, clean-glass airwash technology and heavy-gauge overbuilt construction, the T5 Insert LE will provide many years of comfort and enjoyment.

STANDARD FEATURES

Heat Output 250-280 M²

EPA 2020 Certified
Reliable, Durable Catalytic-Free Technology
Extended Burn Technology (EBT)
High capacity baffle system
Airwash Technology for clear, clean glass
Multi-port combustion air injection system
Floating firebox for extended stove life
Cast iron over steel construction
304 Stainless Steel Baffle, insulation cover, rails and flame shield
Boost air for easy lighting
Single-Lever Air Control
Metallic black cast iron finish
Cast iron warming shelf & ash lip
Two temperature-actuated variablespeed blowers
Removable flue collar
Inside and outside combustion air capable
North-South fuel loading

TECHNICAL INFORMATION

72,000 BTU Cord Wood
38,200 BTU EPA Test Fuel

Efficiency (HHV) 71.3%
Emissions 1.8 gm/hr.
Log Size (recommended) 16”
Log Size (max) 18 in"
Firebox Size 2.1 cu.ft.
Glass Viewing Area 152 sq.in.
Weight 480 lbs.

Minimum Clearances to Combustibles:

Side of Blower Cover to Adjacent Sidewall ...................................10 in. (245 mm.)

Side of Blower Cover to Side Facing (max 3-1/2 in. deep)...............6 in. (155 mm.)

Top of Cast top to Mantel Facing....................................................12 in. (305 mm.)

Top of Cast Top to Mantel (max 12in. deep)....................................12 in.( 305 mm.)
